OEM Power Button Flex Assembly for iPhone 5C Description:

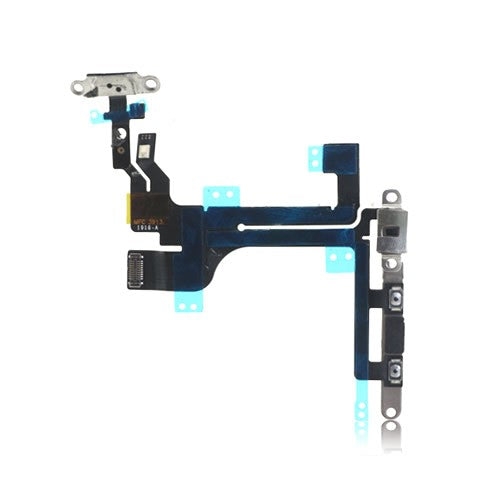

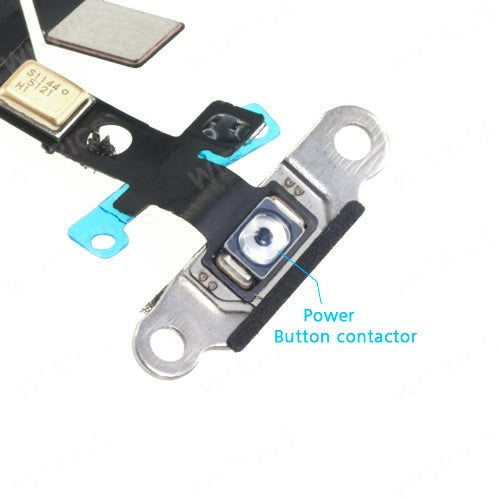

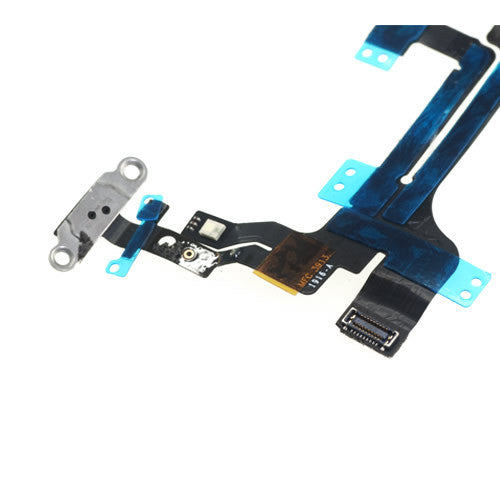

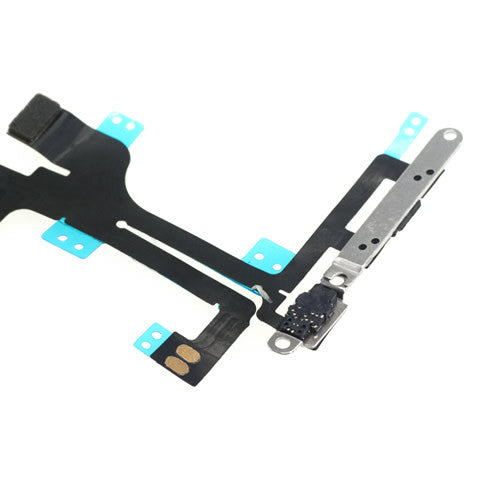

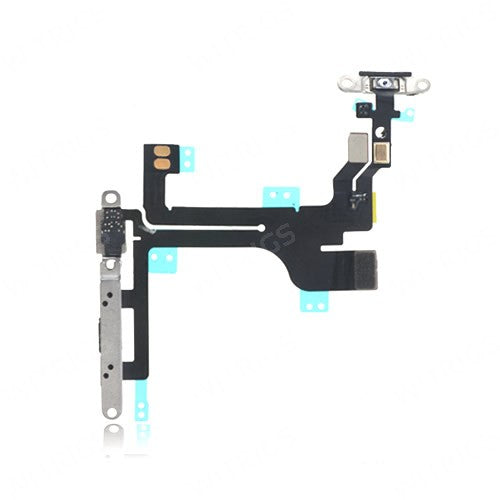

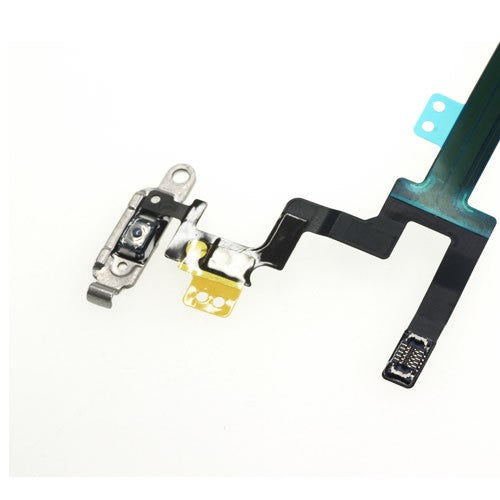

Power button flex assembly for iPhone 5C providing here is absolutely original. It consists of not only the on/off button with securing bracket but volume button with securing bracket, silent switch with securing bracket and MIC. Also there has been the adhesive on the flex cable to stick itself on the rear housing. Once you encountered the problems such as can’t change the volume, can’t sleep/wake the screen, can’t mute the phone or others can hear you but with noise and need to repair, you can get this power button flex replacement for iPhone 5C and replace.
How to replace power button flex for iPhone 5C?
Step 1. Twist off two bottom screws by torx screw driver at first.
Step 2. Place a suction cup on the bottom of the LCD screen, pull with little effort and open the display.
Step 3. Keep the screen standing, and remove the metal bracket securing the LCD screen connectors after twisting off four screws with cross head screw driver.
Step 4. Release three connectors including LCD connector, digitizer connector and front camera connector and remove the LCD screen.
Step 5. Remove two screws here and remove the metal bracket securing the battery connector.
Step 6. Remove the battery after releasing the connector.
Step 7. Twist off two screws on the bracket securing rear camera.
Step 8. Remove the rear camera.
Step 9. Twist off the screw and remove the vibrator.
Step 10. Move into the mother board. Release the antenna flex connector carefully.
Step 11. Remove four screws on fastening the mother board.
Step 12. Remove the SIM card tray with clip.
Step 13. Pry up and remove the mother board. Attention: Release the flex connector on the top and back of the logic board first.
Step 14. Remove the metal bracket securing the MIC here after twisting off the screws.
Step 15. Remove all five screws fastening the on/off button, volume button and mute button on the flex cable.
Step 16. Now can remove the sleep/wake button flex for iPhone 5C carefully especially two ribbons on the left corner because there is adhesive under the cable.
Tips: Don’t lose any small parts and screws when replace. And if you want to stay the metal brackets from old component, you also can get the power button flex for iPhone 5C without brackets.
OEM Power Button Flex Assembly for iPhone 5C Specification:
-Compatible with: iPhone 5C
Package Content:
1 x OEM Power Button Assembly for iPhone 5C
Packing Details:
-Weight: 0.0021KG
-Packing Size: 5.6x5.5x0.1 (CM)
-Estimated Shipping Weight: 0.0239KG
