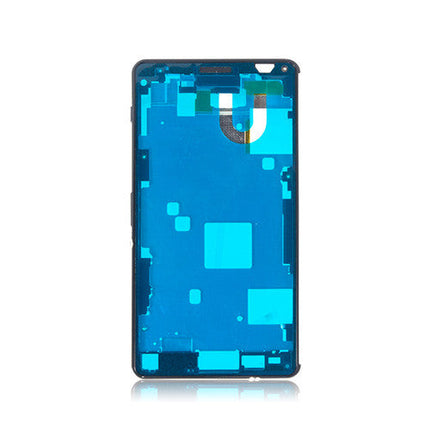

OEM Middle Housing for Sony Xperia Z3 Compact Black Description
-Brand new and original middle housing replacement.
-Compatible with Sony Xperia Z3 Compact only.
-Available in black, white, green and orange. Here is the black one.

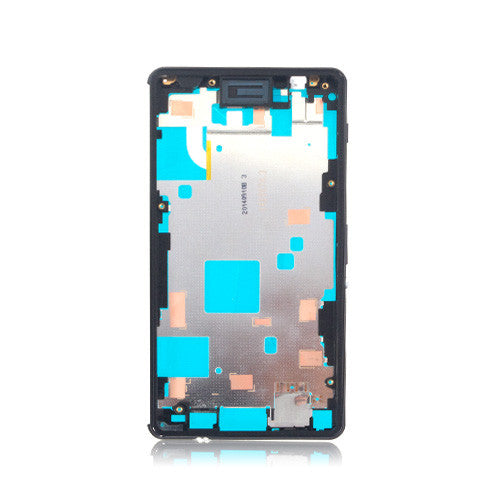

-Its supporting frame is made of plastic material while the mid-frame is made of aluminum metal.

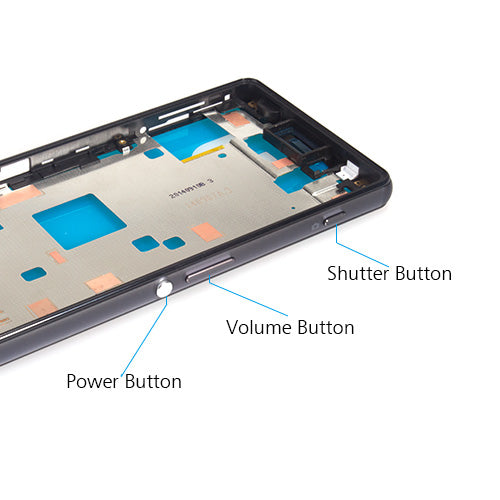

-It comes with the LCD supporting frame sticker, power button, volume button, shutter button, and headphone jack ring, except the the magnetic charging port.

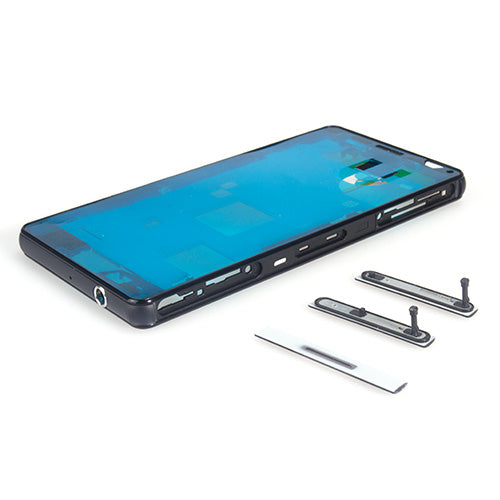

-Cover flaps and magnetic charging port strip have been included on the package for your DIY installation.
-It is used to replace the broken or dented middle frame for Xperia Z3 Compact.
Tips
-Highly recommend professional installation.
-Please check your model before ordering.
-Repair tools needed: heat gun, guitar picks, suction cup, Phillips screwdriver, tweezers.
-Must-have item: back cover sticker.
How to replace
Step 1 Power off your phone, heat up the back cover for one minute.
Step 2 Insert the guitar pick to open a gap from the bottom of the back cover.
Step 3 Slide the guitar picks along the back cover and pry it up by the suction cup.
Step 4 Undo the five Phillips screws.
Step 5 Disconnect the NFC connector.
Step 6 Remove the back frame.
Step 7.Remove securing bracket of the rear camera.
Step 8 Disconnect the rear camera connector, remove the rear camera.
Step 9 Release the screen connector and headphone jack connector.
Step 10 Unscrew one Phillips screw, pry up the motherboard by spudger.
Step 11 Loosen the adhesive sticker under the vibration motor, remove the motherboard with battery.
Step 12.Pry up the headphone jack and remove it.
Step 13.Pry up the loudspeaker and remove it.
Step 14 Heat up the screen for about 2 minutes.
Step 15 Insert the guitar picks into the two edges on the top of the screen.
Step 16 Slide the screen by the spudger and pry up the screen by suction cup.
Step 17 Separate the LCD screen and the middle housing.
Package Content
1 x OEM Middle Housing for Sony Xperia Z3 Compact Black
Packing Details
-Weight: 0.0216KG
-Packing Size: 12.5x6.2x0.8 (CM)
-Estimated Shipping Weight: 0.0666KG
