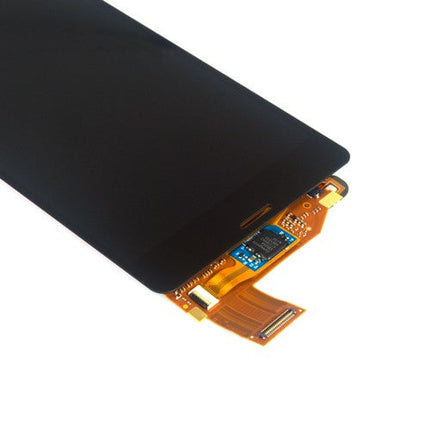

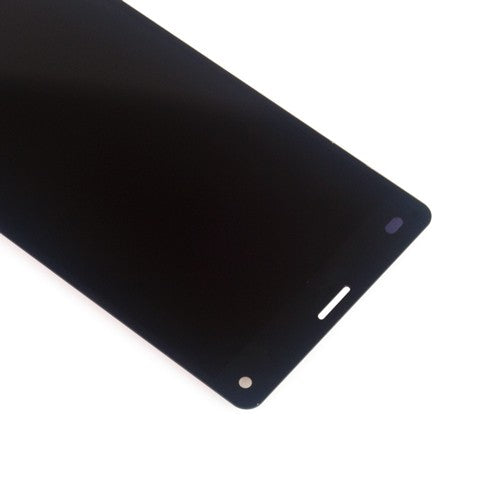

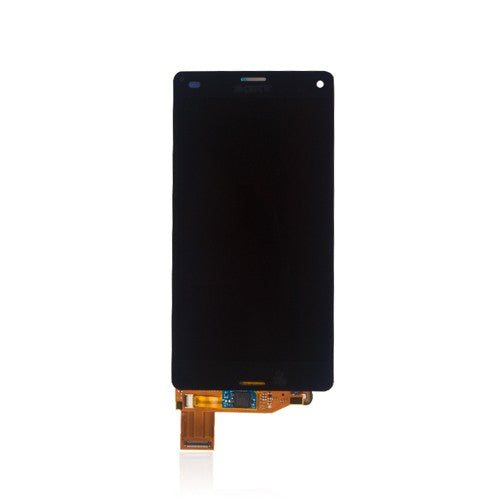

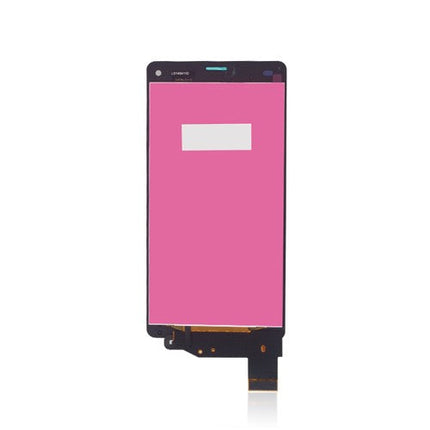

OEM LCD with Digitizer for Sony Xperia Z3 Compact Black
Description

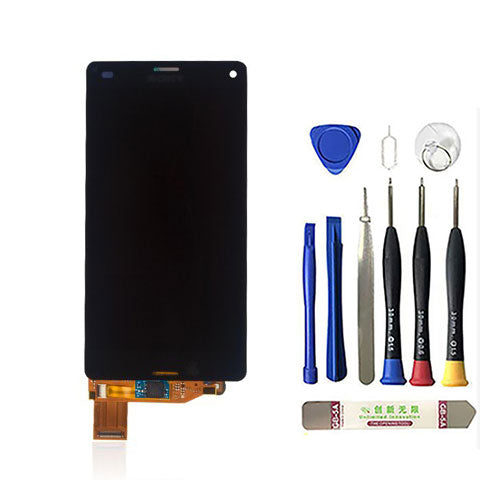

Comes with a complete cell phone repair kit
Tip: This is the original screen, the screen parameters are the same as the screen that came with the phone from the factory.
-Brand new and original screen replacement.
-Compatible with Xperia Z3 Compact only.
-Available in black and white. Here is the Black one.
-This LCD assembly includes the LCD screen and the digitizer.
-It features the IPS LCD capacitive touchsceen with 16M colors, the resolution of 720 x 1280 pixels, 319 ppi pixel density.
-It is used to solve such screen problems as the scratched or cracked screen, not working display.
Common problems:
1. Ghost touch
- “I damaged my phone because I pour water in it, and the screen dies, only the screen, the entire thing still working, its charging, it still plays ringtone.”
2. Black Screen
- The Xperia Z3 Compact screen won’t turn on at random times for different people, but the common problem is that the screen fails to wake up.
3. Dead pixel on the screen
- A few users have complained that they begin to see dead pixels on their Xperia Z3 Compact screen, either immediately, or after using the phone for a while.
4. Touch screen not working
- “The whole screen is not working properly, I have to press really hard to make it work.”
- The bottom part of the screen not working, when someone was calling you can’t answer it by slide the screen.
How to solve?
1. Ghost touch
- If your phone is dropped in the water or splashed with the water, and then the touch not working, which is call “water damage”, you need to disassemble the phone and package the parts with dry newspapers or cloth about 48 hours, then reinstall the phone.
- Do not use a hair dryer to dry the water, let the phone dry itself.
2. Black Screen
- Turn off your phone. Then take out the SIM card and reinsert your SIM Card. see if the problem has been solved.
3. Dead pixel on the screen
- Try adjusting the brightness on the phone to attempt to burn away unresponsive pixel.
Restart the phone to see whether the issue solved or not.
- Use the test code to see if the display problem solved, Open the dial key and enter the test code #*#*7378423*#*# > Service tests > Display.
4. Touch screen not working
-Sometimes the screen flickering problem can be fixed by Sony official software, but if there’s no official solution for it, you can also try reconnect the screen flex cable, cause the flex cable may be loosen when accidentally drop or hit.
However, if software and flex cable reconnection can not fix the screen problem, then you should turn to the hardware solution: change a new screen. Is it hard to repair it? Here we also provide a video repair guide for Xperia Z3 Compact screen replacement.
Repair Tips:
1. Take out the SIM card tray before the repair to prevent damage the motherboard.
2. Before installing the new lcd screen, you need to clean up the original adhesive.
3. The original lcd screen comes with plastic film, remove the plastic film before install.
4. Afresh disassembly the original adhesive will lose best viscidity, so you need to care about the adhesive is installed in to precise place.
5. If the worn screen is broken or turn into shutter, you can put the adhesive tape on the broken screen, to prevent injury and shutters stuck in motherboard.
6. Test the new screen before installation.
Tips
-Highly recommend professional installation.
-Please check your model before ordering.
-Repair tools needed: Phillips screwdriver, spudger, heat gun, guitar picks.
-Must-have items to finish the installation: Back cover sticker, LCD screen adhesive sticker.
-Test the screen before you reassemble the phone.
How to replace
Power off your phone.
Step 1. Heat up the back cover for one minute.
Step 2. Insert the guitar pick to open a gap from the bottom of the back cover.
Step 3. Slide the guitar picks along the back cover and pry it up by the suction cup.
Step 4. Undo the five Phillips screwdrivers.
Step 5. Disconnect the NFC connector.
Step 6. Remove the back frame.
Step 7. Release the LCD screen cable.
Step 8. Heat up the screen.
Step 9. Insert the guitar picks into the two edges on the top of the screen.
Step 10. Slide the screen by the spudger and pry up the screen by suction cup.
Step 11. Remove the LCD screen with caution.
Step 12. Remove the earpiece.
Package Content
1 x OEM LCD with Digitizer for Sony Xperia Z3 Compact Black
Packing Details
-Weight: 0.0224KG
-Packing Size: 14.2x6.1x0.1 (CM)
-Estimated Shipping Weight: 0.0551KG
