Description

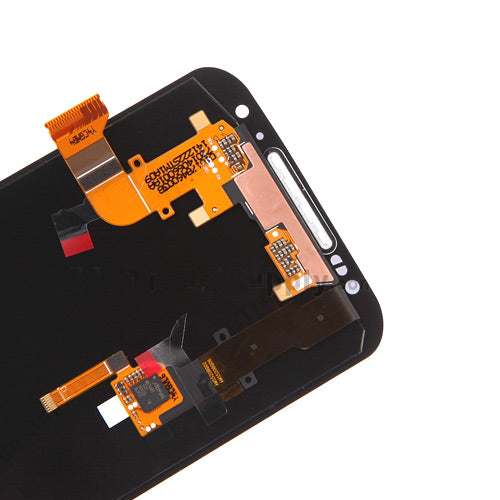

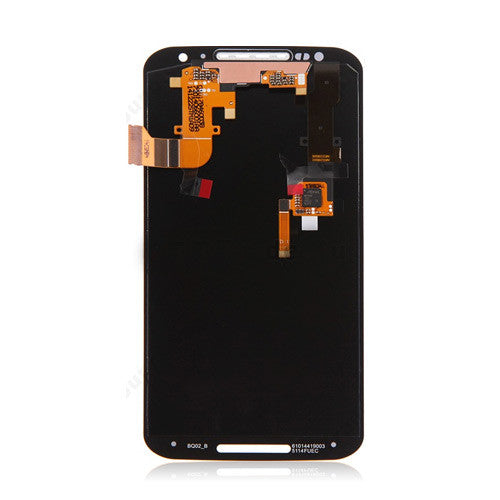

OEM LCD with Digitizer for Motorola Moto X2 Black
Description
-Brand new and original LCD with Digitizer replacement.
-Compatible with Motorola Moto X2, which is also called as Motorola Moto X (2nd Gen.), Motorola Moto X (2014).
-Available in black and white. Here is the Black one.
-This LCD assembly replacement for Moto X 2014 includes the LCD display and digitizer touch screen.
-It is used to replace the faulty/cracked screen and cure display problems, dead pixels, wrong color isssues.
Tips
-Highly recommend professional installation.
-Please check your model before ordering.
-repair tools needed: SIM card eject pin, guitar picks, T3 screwdriver,spudger, tweezers
-Must-have items to finish the installation: LCD Supporting Frame Sticker, Back cover adhesive sticker.
-If you want easier replacement, you can buy Moto X2 LCD with digitizer assembly. You do not need to do front housing and LCD screen separating while have this assembly one.
How to replace
Step 1 Power off the phone.
Step 2 remove the SIM card tray with specialized eject pin.
Step 3 Use the eject pin to open a gap and insert the guitar picks to enlarge the gap.
Step 4 Slide the guitar picks along the sides slowly and carefully.
Step 5 Remove the back cover.
Step 6 Remove the power button and battery connector protector.
Step 7 Release the side button and battery flex cable.
Step 8 Unscrew the 18screws with T3screwdriver.
Step 9 Separate the front panel assembly and middle housing assembly.
Step 10 Release the LCD screen connector carefully by spudger.
Step 11 Release the touch screen connector and loosen the adhesive underneath by spudger.
Step 12 Pry up the motherboard from bottom side and remove it.
Step 13 This is the Motorola X 2014 LCD screen which comes with bezel frame together.
Attention: Here is the Motorola Moto X3 LCD with Digitizer only, you can also buy Moto X3 LCD Screen Assembly for less difficult repair.
Package Content
1 x OEM LCD with Digitizer for Motorola Moto X2 Black
Packing Details
-Weight: 0.003KG
-Packing Size: 14x7.2x0.1 (CM)
-Estimated Shipping Weight: 0.06KG
