Description

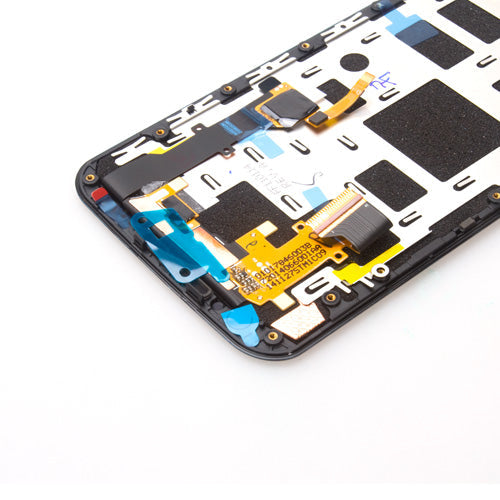

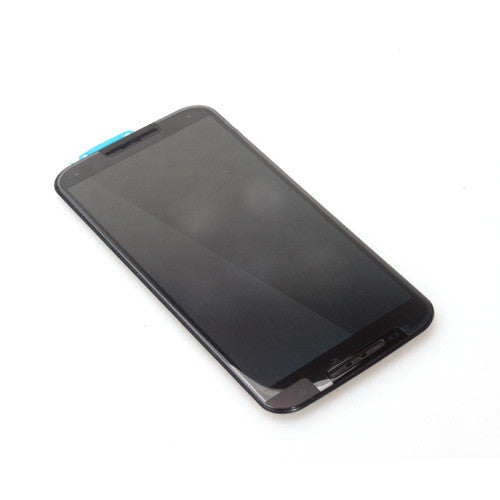

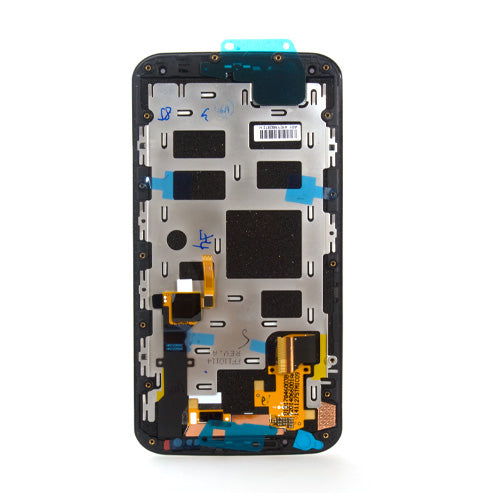

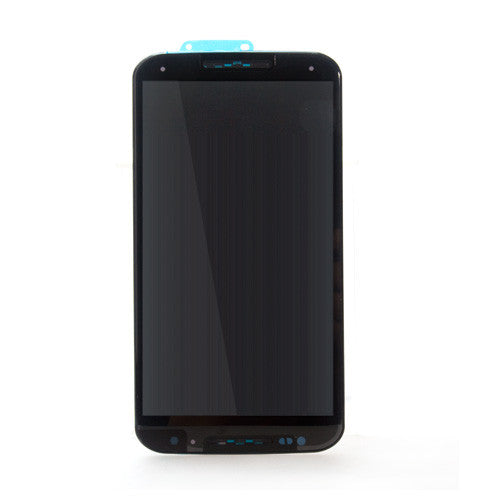

OEM LCD Screen Assembly for Motorola Moto X2 Black Description:
-Brand new and OEM LCD screen assembly replacement.
-Compatible with Motorola Moto X2 only.
-Available in black.
-This LCD screen assembly includes LCD screen, digitizer and the LCD supporting frame.
-It is used to replace the old/broken /cracked / untouchable LCD screen with digitizer.
Tips
-Highly recommend professional installation.
-Please check your model before ordering.
-Repair tools needed: eject pin, guitar picks, tweezers, Torx T3 screwdriver.
-Must-have items to finish the installation: Back cover adhesive sticker.
How to replace
Step 1 Power off the phone.
Step 2 remove the SIM card tray with specialized eject pin.
Step 3 Use the eject pin to open a gap and insert the guitar picks to enlarge the gap.
Step 4 Slide the guitar picks along the sides slowly and carefully.
Step 5 Remove the back cover.
Step 6 Remove the power button and battery connector protector.
Step 7 Release the side button and battery flex cable.
Step 8 Unscrew the 18screws with T3screwdriver.
Step 9 Separate the front panel assembly and middle housing assembly.
Step 10 Release the LCD screen connector carefully by spudger.
Step 11 Release the touch screen connector and loosen the adhesive underneath by spudger.
Step 12 Pry up the motherboard from bottom side and remove it.
Step 13 This is the Motorola X 2014 LCD screen which comes with bezel frame together.
Package Content:
1 x OEM LCD Screen Assembly for Motorola Moto X2 Black
Packing Details:
-Weight: 0.047KG
-Packing Size: 14 x7.2 x 0.3(CM)
-Estimated Shipping Weight: 0.068KG
