Description
OEM Display for LG Nexus 5 D820 White Description

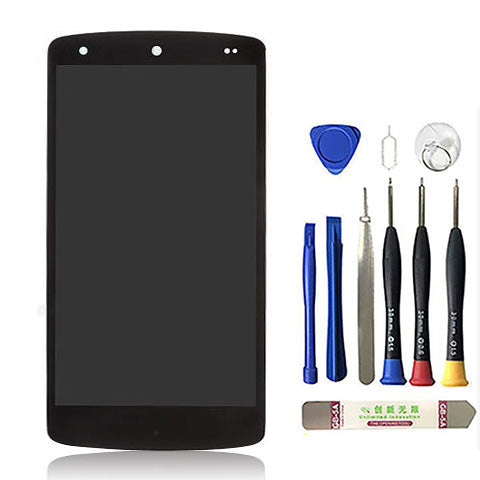

Comes with a complete cell phone repair kit
Tip: This is the original screen, the screen parameters are the same as the screen that came with the phone from the factory.
This original display assembly contains the LCD screen, the digitizer and the frame which are already attached tightly together. This original touch screen features of accurate screen display and high sensitivity. Once your Nexus 5 screen broken, come here and replace this original Nexus 5 display with frame will save your time and cost.
Problems and solutions of LCD screen for LG Nexus 5 D820
Through forums, blogs, news or customers, we have collected a lot of problems of digitizer for Nexus 5; the following are some typical issues for Nexus 5 LCD screen, for instance:
Touch screen not working,
Unresponsive display,
Weak light screen or blank screen,
Dead pixels on screen,
Cracked screen.
Generally speaking, we can use the two solutions to check your Nexus 5 LCD screen broken or not by soft hardware problems.
Reboot the phone
Long press the power button for 15-20 seconds, then press again to boot up to see if the screen can function or not.
Check third-party app
Try to use a free app like Dead Pixel Test to confirm. If you can still see it when the screen is off (and it won’t wipe away) then it’s more likely to be dust trapped under the screen. If the problem retained after that, then you should consider replacing it.
As for the problem of screen broken or screen cracked, we suggest you to replace the complete display assembly. Because the screen and the glass are glued firmly on the board, comparing with only replace the LCD screen, choosing this original screen with frame is much convenient.
How to replace Nexus 5 screen ?
People can solve the software problems by themselves easily, as to the screen repair; we’d like to provide the repair guide for replacing the display assemble for Nexus 5. Next is the step by step of Nexus 5 screen replacement.
Make sure your device is power off before you begin.
Remove the back cover by spudger. Then remove the SIM card and card slot.
Next take your small Phillips Screwdriver to remove the six screws securing the back supporting frame and the four screws securing the loudspeaker. Then pry off the back housing frame by starting at the audio jack. See figure below for screws.
Remove the battery, when doing this you should peel up the connectors of charging port flex cable and the battery firstly. Friendly reminder: you may need big strength for there are some adhesive under the battery.
Pry off the loudspeaker starting right at the middle of the bottom of the phone, this will allow you to remove easily without breaking the cable. Then pry off the charging port flex cable gently. Be cautious not to damage when removing because it is held down with some adhesive you will have to peel up.
Disconnect all the connectors on the motherboard, and then remove the motherboard and back camera. The specific connectors can be found in the pictures below.
Remove the headphone jack, earphone and the front facing camera. Take out the two RF and finish the assembling.
Taking a new Nexus 5 LCD screen, and according to the steps above to reinstall your Nexus 5 glass to get a new screen replacement.
1. What else needed when replace LCD screen for Nexus 5 ?
A Philip Screwdriver
A spudger
A Guitar pick
A tweezer
2 How much will repair LCD screen for Nexus 5 cost?
You need to pay for:
$4.79 Philip Screwdriver
$1.38 a spudger
$1.59 a Guitar pick
$3.17 a tweezer
$161.99 LCD Screen with Digitizer Assembly and Frame
Sum=$172.92 + Shipping cost
OEM LCD Screen with Digitizer Assembly and Frame for LG Nexus 5 D820 White Specification:
-Color: White
-Compatible with: LG Nexus 5 D820
Package Content:
1 x OEM LCD Screen with Digitizer Assembly and Frame for LG Nexus 5 D820 White
Packing Details:
-Weight: 0.06KG
-Packing Size: 13.6x6.8x0.2 (CM)
-Estimated Shipping Weight: 0.075KG
