Description

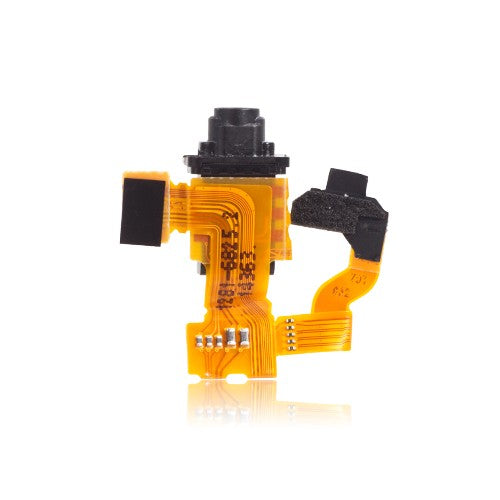

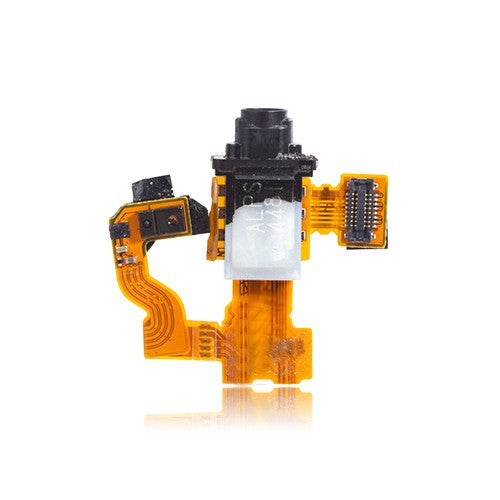

OEM Headphone Jack for Sony Xperia Z3 Compact Description:
-Brand new and original headphone jack replacement.
-Compatible with Xperia Z3 Compact only.

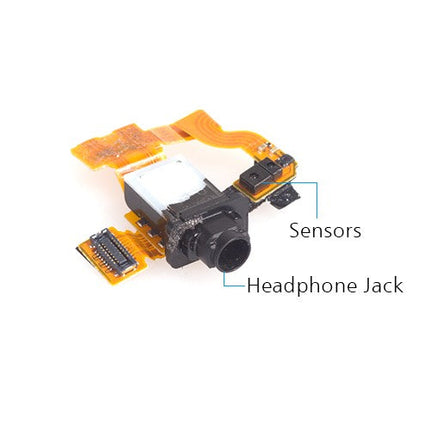

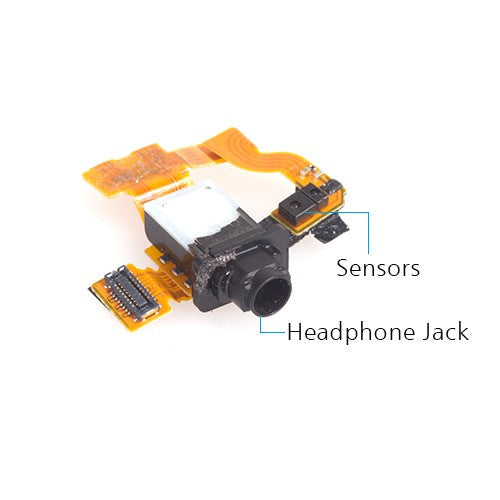

-It comes with sensors.
-It is used to replace the broken earphone jack which makes you hear no sound from the good headphone or only sound from the loudspeaker.
Tips
-Highly recommend professional installation.
-Please check your model before ordering.
-Repair tools needed: heat gun or hair dryer, suction cup, guitar picks, Phillips screwdriver, tweezers.
-Must-have item: back cover sticker.
How to replace
Step 1 Power off your phone, heat up the back cover for one minute.
Step 2 Insert the guitar pick to open a gap from the bottom of the back cover.
Step 3 Slide the guitar picks along the back cover and pry it up by the suction cup.
Step 4 Undo the five Phillips screws.
Step 5 Disconnect the NFC connector.
Step 6 Remove the back frame.
Step 7.Remove securing bracket of the rear camera.
Step 8 Disconnect the rear camera connector, remove the rear camera.
Step 9 Release the screen connector and headphone jack connector.
Step 10 Unscrew one Phillips screw, pry up the motherboard by spudger.
Step 11 Loosen the adhesive sticker under the vibration motor, remove the motherboard with battery.

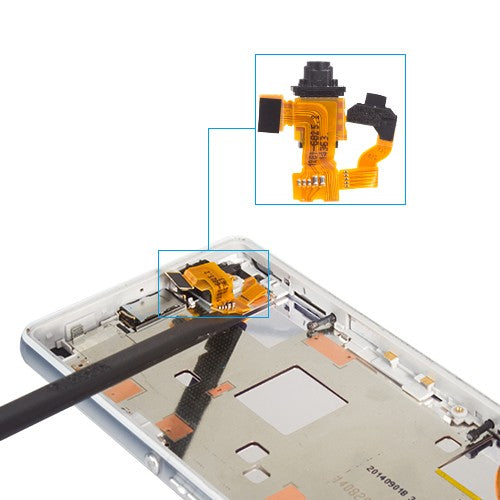

Step 12.Pry up the headphone jack and remove it.
Package Content:
1 x OEM Headphone Jack for Sony Xperia Z3 Compact
Packing Details:
-Weight: 0.0009KG
-Packing Size: 3.2x2x0.7 (CM)
-Estimated Shipping Weight: 0.0112KG
