Description

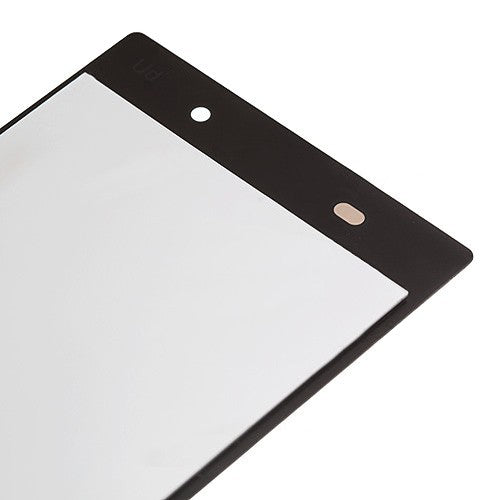

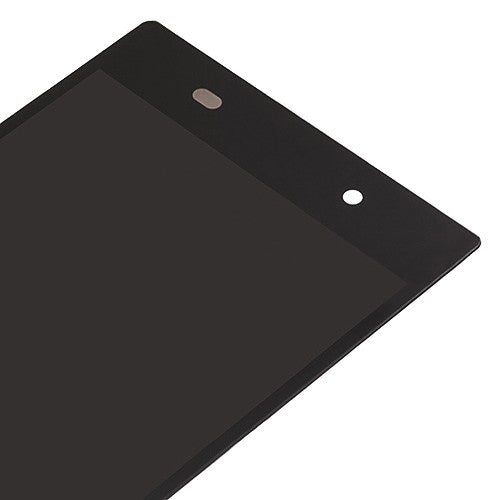

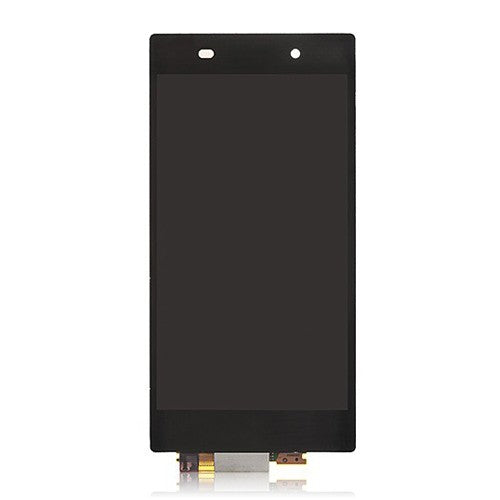

OEM Complete Digitizer with LCD Screen for Xperia Z1 Black Description:
If the LCD screen of Sony Xperia Z1 shows pictures with spots or lines which greatly affect your screen viewing, or if the digitizer lose sensitivity so that you fails to execute your order, you should consider a replacement for your complete Digitizer with LCD Screen and then make your Sony Xperia Z1 work properly again.

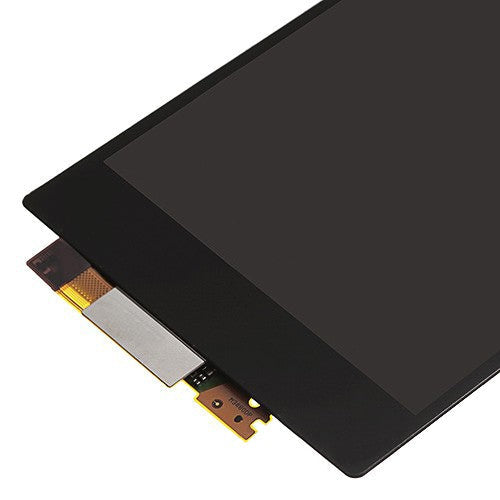

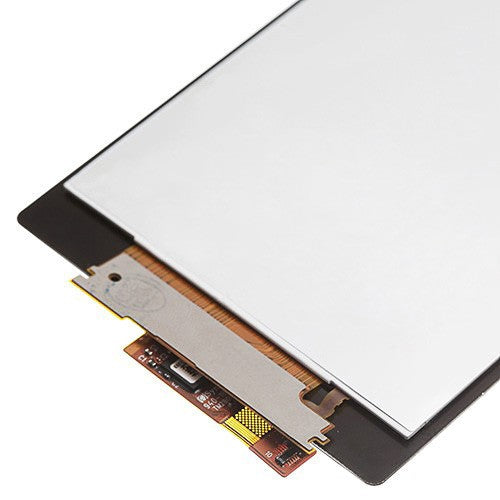

The LCD screen is made of TFT material which has a long history and shows vivid pictures or videos for you. The resolution is 1920x1080 pixels, which brings you a chance to take stunning pictures. LCD flex cable and digitizer flex cable has been installed on the replacement part. Attach it to the motherboard through the connector and thus it can work perfectly for you. But the replacement needs professional skills. Careless operation may make a damage. You can turn to the expert in the phone repairing shop for help.
Component parts of LCD screen for Sony Xperia Z1
The screen on Xperia Z1 mainly includes three parts: there is a piece of anti shatter film on the surface to protect the screen from scratches; under the ASF, there is a touch screen also called digitizer which is responsible for the touch function; and the most important LCD screen comes the last which is in charge of imaging. But except the ASF, once the touch screen problem occurs, the LCD screen and digitizer of Xperia Z1 can’t be replaced separately.
Problems and solutions of LCD screen for Sony Xperia Z1：
The screen problems can be divided into two classes. One is the touch screen problem of Xperia Z1 including unresponsive screen and broken glass. The other is the LCD screen problem for Xperia Z1 as screen crack, black screen of death, color lines on screen, big white stripes on screen, only backlight and so on. At that time, first consideration is software, and then is the hardware after updating and rooting have failed.
How to replace the LCD screen for Xperia Z1?
Because of the special structure of Sony Xperia Z1, we have to open it from back even only need to replace the broken screen.
1. Remove the back cover.
Heat up the edges of the back cover by using heat gun or blow dryer to melt the adhesive sticker, and then open it with a spudger tool and guitar picks.
2. Remove the back cover supporting frame.
Unscrew the screws on the back cover supporting frame by Hexagonal Screwdriver and release the connector of microphone flex cable as below.
Heat up the edges in the same way for melting adhesive. There are some hidden keys. So you need a guitar pick to pry the back cover supporting frame up.
3. Remove the rear facing camera.
Release the connector then you can remove the camera. And take away a metal bracket held the rear facing camera on the motherboard.
4. Remove the battery and two antenna RF cables.
It is easy to pry up the battery because there is no any adhesive.
Two antenna RF cables are fixed by four sockets and three clips as below. Releasing them you will take away cables easily.
5. Remove the motherboard.
Remove to release all connectors on motherboard at first. And then you should release four hidden keys securing the motherboard by a tweezers. Now you can remove the motherboard.
6. Remove the loudspeaker and release the connectors of LCD screen with digitizer.
Using a tweezers you can pry up the loudspeaker quickly. After removing it, you will see three connectors including main flex cable connector, LCD connector and digitizer connector which overlap. You need to release these connectors by a spudger tool carefully.
7. Separate the LCD screen with digitizer from the LCD supporting frame.
Heat up the edges for melting adhesive.
Put a suction cup on the bottom of the LCD screen. And pull the suction with some efforts.
Separate the LCD with digitize from the LCD supporting frame under the help of a spudger tool.
Push out the flex cables of LCD screen and digitizer. Then you can remove the LCD with digitizer successfully.
8. Taking a new LCD screen with digitizer replacement part, and according to the steps above to assemble your Xperia Z1.
Tips of LCD screen repair for Xperia Z1.
No matter the problem of LCD screen or touch screen on Xperia Z1, as soon as ensure that software recovery failed also none of the flex cable business, they should be replaced together. While repairing the screen, there are several tips must be mentioned.
A. Though only replacing the screen, the whole phone need to open from back cover step by step until leaving the complete screen with supporting frame at last. That means you not only need an original replacement screen for Xperia Z1 but also all of the adhesive stickers at the same time rather than only one.
B. Must stress all the edges with adhesive stickers tightly and keep the phone away from water for a long time in care of the DIY fault. And your Xperia Z1 is still water resistant even waterproof under the professional install skills, powerful confidence and considerate heart.
C. Before you installing the back cover, please test the new screen for Xperia Z1 at first in case of the trouble of variation.
D. When replace the screen for Xperia Z1 successfully, you should pay more attention to the protection of your phone. You can choose the tempered glass screen protector and a simple case.
E. No matter what kind of and how bad thing happened on your screen of Xperia Z1, if not your mistake, take it to the Support Service Center at first always if your phone still under the warranty.
How much will screen repair for Sony Xperia Z1 cost?
You need to pay for:
US$ 123.21 Complete Digitizer with LCD Screen
US$ 2.57 LCD Supporting Frame Adhesive Sticker
US$ 2.57 Back Cover Adhesive Sticker
US$ 2.57 Back Housing Frame Adhesive Sticker
US$ 2.57 Middle Frame Adhesive Sticker
US$ 8.26 7pcs Repair Tool Sets
Sum=$141.25 + Shipping cost
OEM Complete Digitizer with LCD Screen for Xperia Z1 Black Specification:
-Color: Black
-Compatible with:
Sony Xperia Z1 L39h C6902 C6903 C6906 C6943
Package Content:
1 x OEM Complete Digitizer with LCD Screen for Xperia Z1 Black
Packing Details:
-Weight: 0.07KG
-Packing Size: 14x7.0x0.3 (CM)
-Estimated Shipping Weight: 0.1KG
